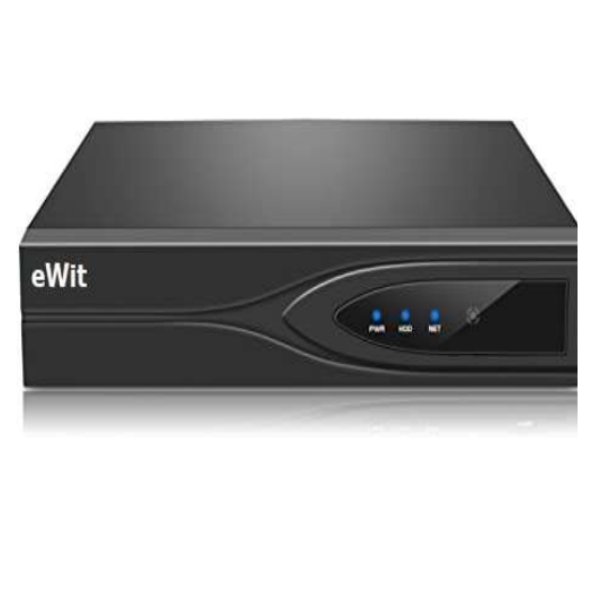

32 Channel NVR H8 New
eWit next generation network video recorder offers unparalleled recording technology for IP video
surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage. Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices, making it the perfect solution for surveillance systems with or without a video management system (VMS).
Description
Key Features-
- Intel Processor
- Max 32 IP Camera Inputs with IVS Recording
- Max 256/256 Mbps Incoming/Outgoing Bandwidth
- Up to 32MP~CIF Resolution for Preview and Playback
- Expanded Storage Space
- Smart Tracking
- Intelligent Video System with Business Analytics (Two IP Channels)
- Dual-OS Design to Ensure High Reliability of System Running
- H.264+ Compression Effectively Reduces the Storage Space and Costs by up to 50%
- HDMI1/VGA1 and HDMI2/VGA2 Outputs Provided
- HDMI1 Video Output at up to 4K (3840×2160) Resolution
- HDMI2 Video Output at up to (1920×1080) Resolution
- Up to 8 SATA Interfaces for Recording and Backup
Specification
| Feature | Details |
|---|---|
| Processor: | Industrial-Grade Embedded Processor |
| IP Camera Input: | 32 Channel |
| Operating System: | Embedded LINUX |
| Two-way Talk: | 1 channel Input, 1 channel Output, RCA |
| Audio: | 2-Way Radio; Codec Support G-711U, G-711A, G726. |
| User Interface: | Web, Local GUI |
| Performance By Camera: | 8 Channel |
| Performance By Face Detection: | 4 Channels |
| AI Search by Camera: | 8 Channel |
| Face Attributes: | Search for pictures by channel, time and event type |
| AI Search by Face Detection: | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Video Output: | 1 x VGA output, 2 x HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Performance By Camera SMD: | 12 Channel |
| AI Search by SDM Camera: | Search by target classification (human, vehicle) |
| Video Recording: | 400Mbps |
| Video Display Split: | 1/4/8/9/16/25/32/64/80 |
| Third Party Camera Access: | ONVIF, RTSP |
| Network Bandwidth: | Incoming: 400Mbps, Playback: 32Mbps, Transmission: 400Mbps |
| Recording Resolution: | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Compression: | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| OSD: | Camera Title, Time, Camera Lock, Motion Detection, Recording |
| Trigger Events: | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Motion Detection: | MD Zones: 396(22×18) |
| Video Loss/Camera Blank: | Support |
| Alarm Input/Output: | In:16ch/Out:6ch |
| General Alarm: | Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
| Anomaly Alarm: | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; over CPU usage; record exception |
| Intelligent Alarm: | Face detection; tripwire; intrusion; scene change; heat map; people counting; stereo analysis |
| Alarm Linkage: | Record; snapshot; buzzer; log; preset; email; tour |
| Smart Phone: | iPhone, iPad, Android Phone |
| Hard Disk: | 8 SATA ports, up to 10TB each, 1 eSATA Port |
| RAID: | RAID 0, 1, 2, 5, 10 |
| Array Type: | Hot Swappable HDD Interface with Raid0, Raid1, Raid5, Raid6, Raid10 |
| Disk Group and Quota: | Separate video per Channel |
| Bit Rate: | 16Kbps ~ 20Mbps per Channel |
| Recording Capability: | 8 channels (1080p@30fps); 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30fps |
| Decoding Format: | H.265+/H.265/H.264+/H.264 |
| Audio Compression: | PCM: G.711A; G.711U; G.726; AAC |
| RCA: IN/Out: | 1/1 |
| Recording Mode: | Manual, Schedule (Regular/Continuous), Motion Detection, Line Crossing, Perimeter Intrusion |
| Intelligent Video: | Support Motion Detection, Camera Tempering Detection, Perimeter Intrusion Detection |
| Search Mode: | Time, Calendar, Channel Search, Event Search, ANR, Regular Video, Motion Detection Video, Alarm Video, Intelligent |
| Sync Playback: | 1/4/9/16 |
| Encryption: | Support Encrypted Recording from IP Camera to NVR |
| Playback Function: | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Playback Mode: | Instant Playback, Local Video, Local Image, External File Playback |
| Smart Features: | MD, Tripwire, Intrusion Detection, Video Loss, People Counting, Face Detection, Face Recognition, ANPR, AI |
| Backup Location: | Local, Network, IPSAN, NAS |
| Backup Mode: | Flash Drive, External USB Storage/Hard Disk, NAS |
| Interface Ports: | 2 USB Ports (2 Rear USB 3.0, 1 Front USB 2.0), 1 RS485, 1 RS232 |
| Max User Access: | 128 Users |
| Record Interval: | 1~120 min (default: 60 min), Pre-record: 1~60 sec, Post-record: 1~60 sec |
| Ethernet: | 2 RJ-45 port (10/100M/1000Mbps) Independent or Joint Working |
| Protocols: | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; RTSP; Auto Registration; ONVIF (profile T; profile S; profile G); CGI; SDK |
| Power Supply: | Single, AC100V ~ 240V, 50 ~ 60 Hz, 12VDC, 3.33A |
| Power Consumption: | <10W Without HDD |
| Operating Temperature: | 0°C~55°C |
| Working Temp: | -10°C~55°C / 10%~90%RH / 86~106kpa |
| Operating Altitude: | 3000M |
| Mounting: | 2U Rack Mountable with Rack Mounting Bracket |
| Casing: | Metal |
| Certification: | BIS, CE, FCC, ROHS |
| Country of Origin: | India |
