GENERIC

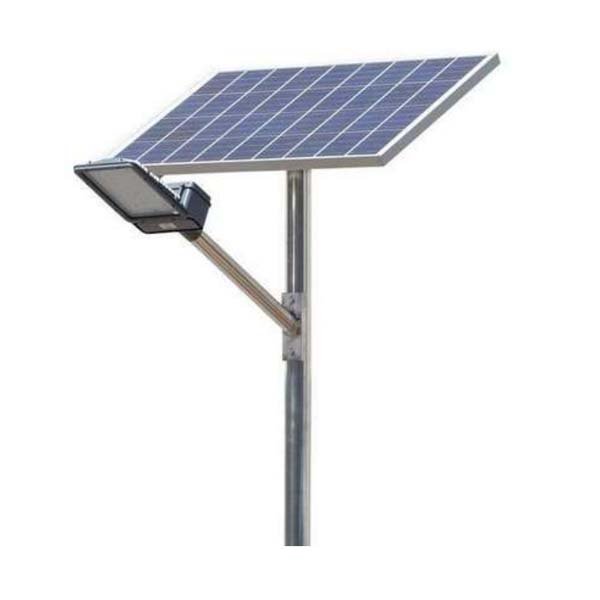

| White LED based solar street lighting system as per | as per MNRE Specification (Specification uploaded) |
|---|---|
| Uploaded specification has been seen and understood | Yes |
PV MODULE
| Minimum Power output of PV Module | 75 Wp |
|---|---|
| PV Module type | Crystalline Silicon Terrestrial Photovoltaic (PV) modules |
| Minimum efficiency of PV Module (in %) | 14 |
| PV Module manufactured in | India |
BATTERY
| Battery voltage, Minimum (in Volts) | 12.8 |
|---|---|
| Battery capacity, Minimum (in Ah) | 30 |
| Battery type | Lithium Ferro Phosphate |
| Battery enclosure | External enclosure with IP65 Protection |
LIGHT SOURCE
| Light source | White Light Emitting Diode (W-LED) |
|---|---|
| Rating | 60Watt |
| Total luminous flux | ≥ 1500 lm |
| Luminous efficacy (i.e. system efficacy) | ≥ 125 lm/W. |
| Color Temperature | 5500 K to 6500 k |
ELECTRONICS
| Overall total Efficiency of the Electronics | >=90% |
|---|---|
| Ingress Protection (IP) for Optical and Control gear compartment | IP 65 |
| Necessary lengths of wires/cables, switches suitable for DC use and fuses should be provided | Yes |
MECHANICAL COMPONENTS
| Conformity to the specification for steel Pole | as per IS:1161 |
|---|---|
| Pole Class | Medium |
| Height of pole (in m) | 6 |
| A corrosion resistant metallic frame structure should be fixed on the pole to hold the SPV module | Yes |
| The pole should have the provision to hold the luminaire. | Yes |
WARRANTY
| Minimum Warranty for street lighting system (including the battery) from the date of supply (in Months) | 60 |
|---|---|
| Minimum Warranty for PV module(s) from the date of supply (in Years) | 25 |
| Minimum warranty for PV modules output peak watt capacity, which should not be less than 90% at the end of (in Years) | 10 |
| Minimum warranty for PV modules output peak watt capacity, which should not be less than 80% at the end of (in Years) | 25 |
CERTIFICATIONS
Yes
| Availability of Type test report from Central Government/NABL/ILAC | Yes |
|---|---|
| Accredited laboratory to prove conformity to the specification. | |
| Test report number – Must declare | 201006002 |
| Report date – Must declare | 24/06/2021 |
| Name of lab – Must declare | bharti automation |
| Address of lab – Must declare | gurgaon |
| Agreed to furnish valid BIS CRS certificates for the applicable items as on date to buyer / consignee on demand | Yes |
| Agreed to furnish all the test reports and certificates to the buyer/consignee on demand | Yes |
