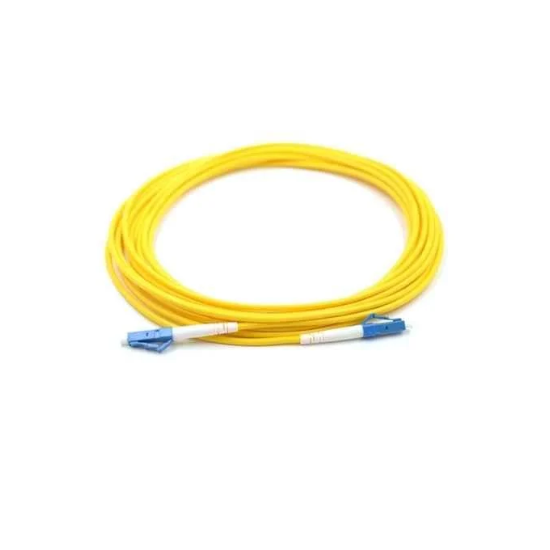

EWIT Patch Cord LC–LC 6M
eWit provides a range of standard simplex and duplex patch cords, available in various connector and cable configurations. These patch cords are manufactured to meet full standard optical specifications, with precise length tolerances. Every assembly undergoes a 100% inspection process to ensure optimal optical performance and proper fiber end face finish. eWit’s optical fiber patch cords are ideal for data communication and telecommunication applications. The connectors used in these assemblies are designed to be fully compatible with industry standards such as ISO Additionally, eWit offers the flexibility to deliver customized patch cords based on specific requirements.
Model Number
Simplex Fiber Optic Patch Cord LC–LC (6 Meter)
Key Features
- Low Insertion Loss
- High Back Reflection Performance
- Stable Capability and High Reliability
- Excellent Mechanical Strength
- Ceramic Connector Ferrule
- Boots Available in Multiple Colors
- Zirconia Ceramic Ferrule, Pre-Radiused and Pre-Polished
- PVC Jacket as Default (LSZH / OFNP Optional)
Description
Technical Specifications
| Description of Item | Fiber Optic Patch Cord for Optical Fiber Cabling |
|---|---|
| Connector Type (End A) | LC |
| Connector Type (End B) | LC |
| Cable Type | Simplex |
| Fiber Type | Single Mode 9/125 Micron |
| Cable Outer Diameter | 0.9 mm |
| Cord Length | 6 Meter |
| Jacket Material | LSZH |
| Cable Color | Yellow |
| Operating Temperature | -10°C to +60°C |
| Insertion Loss (Max.) | 0.3 dB |
| Return Loss (Min.) | 50 dB |
| Ferrule Material | Zirconia Ceramic, Pre-Radiused and Pre-Polished |
| Durability | 200 Mating Cycles |
