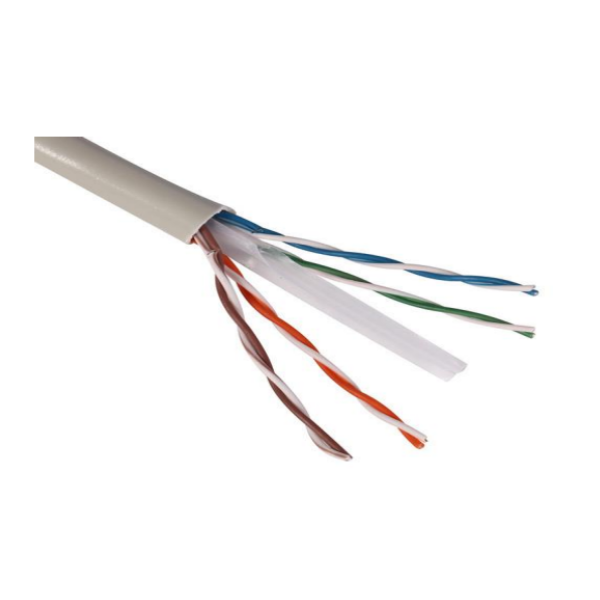

Ewit CAT6 STP Gem

Product Description:
eWit 24/23 AWG copper wire insulated with Polyethylene. Two insulated conductors twisted together to form a pair and four such pairs seprated by a cross filler form the core unit jacketed with flame retardant PVC/LSZH. Enhanced performance cable enables delivering high speed network.

Flame Rating:
PVC-CM/CMR/CMX LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2 Specified and tested upto 250MHz or higher if required Compliant to ANSI/TIA 568-C.2 Cat6, ISO/IEC 11801 Class E

Applications

10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
1000 BASE-T (IEEE 802.3ab)
1000 BASE-TX
TP-PMD (ANSI X3T9.5)
100 Mbps CDDI
ATM 155
4/16 Mbps Token Ring (IEEE 802.5)
Meets IEEE802.3af & 802.3at PoE standards

Product Enquiry

Categories: CABLE, IT Equipment

Description
Reviews (0)

Features & Specifications

Feature	Details
Cable Type	STP Solid CAT6
No of Wires	4 Pairs
Insulation Material	High Density Polyethylene
Rip Cord Material	Nylon
Construction	23AWG
Sheath	FR-PVC Insulation Thickness 0.2mm (nominal)
Insulation Thickness	0.22±0.02mm
Insulation Diameter	0.93±0.05mm
Characteristic Impedance	100 ± 15Ω
Insulation Resistance	Min. 5000 mega ohms-km at 20°C
Cable Diameter	6.1mm (nominal)
Shielding	Aluminium/Polyester Foil + Tinned Copper Braiding
Conductor Resistance	≤ 9.38 Ω/100m
Delay Skew	< 45nS
NVP (%)	69%
Mutual Capacitance	< 5.6nF/100m
Resistance Unbalance	5% Max
Temperature Rating	-20°C to +70°C
Operating Voltage	72V
Dielectric Strength	1.0KV DC or 0.75KV AC for 1 min
Certification & Standards	ISO, CE, FC, ROHS
