| Mounting of light | Top mount |
| Housing material | Metal |
| PV Module | 1.5 Wp to 2.0 Wp |
| Wattage of LED | 0.6 W to 1 W |
| Type of Battery | Lithium ion |
| Battery capacity | 2 AH at voltages at 6 V @ C/20 |
| The total electronic efficiency | Minimum 85% |
| Average duty cycle | 4-5 hours a day |
| Light Uniformity | “The light on the edges of the entire 140 degree spread should not reduce more than 30 % of the light” |
| Autonomy | Minimum of 2 days (Minimum 8 operating hours) |
| Light Source: White Light Emitting Diode (White-LED), dispersed soothing to Eyes by using proper optics and diffuser.Single lamp or multiple lamps can be used | Yes |
| The colour temperature of white LEDs used in the system | 5500 deg K – 6500 deg K |
| The make, model number, country of origin and technical characteristics (including IESNA LM-80 report) of white LEDs used in the lighting system must be furnished to the buyers | Yes |
| Light Out put (Minimum): When detector is horizontal to center point of bottom of light source – Distance 1 Feet: 95 Lux, 2 feet: 16 Lux, 3 feet: 4.5 Lux, 4 feet: 1.5 Lux, 5 feet: 0.5 Lux | Yes |
| “Light Out put (Minimum): When detector is at right to center point of bottom of light source – Distance 1 feet: 230Lux, 2 feet: 85 Lux, 3 feet: 40 Lux, 4 feet: 20 Lux, 5 feet: 12 Lux “ | Yes |
| The light output from the W – LED should be constant throughout the duty cycle | Yes |
| Necessary lengths of wires / cables, switches suitable for DC use and other protections should be provided | Yes |
| “There will be a Name Plate on the system body which will give: a. Name of the Manufacturer or Distinctive Logo. b. Model Number c. Serial Number d. Year | Yes |
| of manufacture “ |
| Unidirectional LED based solar light (Torch) shall conform to MNRE specification | Yes |

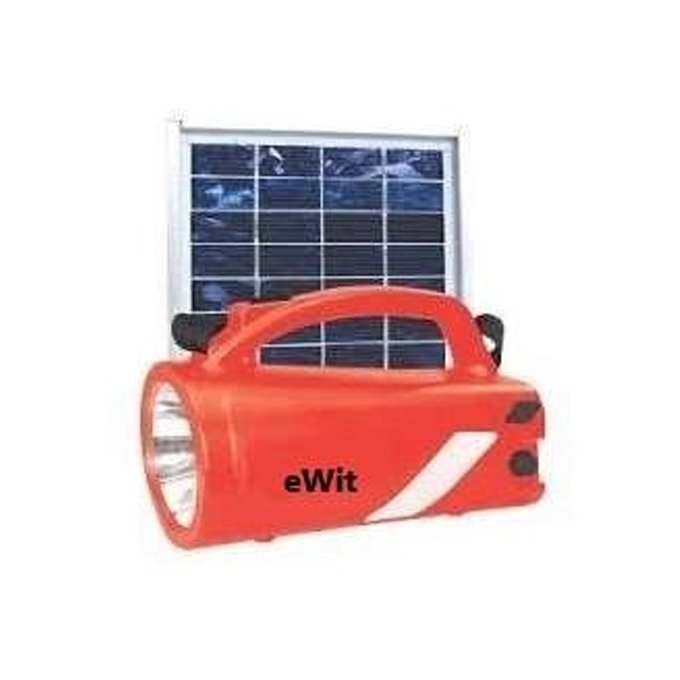

| A Unidirectional LED based solar light (Torch) is a lighting system consisting of PV module, LED(s), battery and electronics, all placed in a suitable housing | Yes |
| The battery is charged by electricity generated through the PV module | Yes |
| The Solar light is basically a portable lighting device suitable for either indoor or outdoor lighting, covering a full range of 140 degrees | Yes |
| The PV module (s) shall contain mono/ multi crystalline silicon or thin film solar cells. In case of crystalline silicon solar cell module it is required to have certificate for the supplied PV module as per IEC 61215:2005 specifications or | Yes |
| equivalen | |
| “The power out put of the PV module must be reported under standard test conditions (STC) at loading voltage. The specified module wattage should be at the applicable load voltage. In case of thin film modules for each model the modules should fulfil | Yes |
| The open circuit voltage of the PV modules under STC should be sufficient enough to charge the battery | Yes |
| The terminal box on the module should have a provision for opening for replacing the cable, if required. | Yes |
| “A strip containing the following details should be laminated inside the module so as to be clearly visible from the front side: a) Name of the Manufacturer or distinctive Logo b) Model or Type No. c) Serial No. d) Year of make” | Yes |
| A copy of the test certificate for the battery (including its make, country of origin and model number) used in the | Yes |
| system should be provided to the buyer | |
| “At least 75% of the rated capacity of the battery should be between fully charged & load cut off conditions.(In case of Li- ion/NiMH/LiFP the DoD (Depth of Discharge) may be up to 90%” | Yes |
| Battery should conform to the latest BIS/ International standards | Yes |
| The light output should remain constant with variations in the battery voltages | Yes |
| Electronics should have temperature compensation for proper charging of the battery throughout the year | Yes |
| Necessary lengths of wires / cables, switches suitable for DC use and other protections should be provided. | Yes |
| The system should have protection against battery overcharge and deep discharge conditions | Yes |
| “Proper protection should be provided to protect against short circuit conditions” | Yes |
| A blocking diode should be provided as part of the electronics, to prevent reverse flow of current through the PV module(s), in case such a diode is not provided with the PV module | Yes |
| Full protection against open circuit, accidental short circuit and reverse polarity should be provided | Yes |
| W-LED(s) should not emit ultraviolet light | Yes |
| The system should have two indicators, green and red | Yes |
| a green light to indicate charging in progress and a red LED to indicate deep discharge condition of the battery. The green LED should glow only when the battery is actually being charged | Yes |
| Adequate protection is to be incorporated for “No Load” condition,
e.g. when the lamp is removed and the |
Yes |
| system is switched ON |
| “Components and parts used in Unidirectional LED based solar light (Torch) should conform to the latest BIS / international specifications, wherever such specifications are available and applicable” | Yes |
| The PV module will be warranted for a minimum period of 20 years from the date of supply and the Unidirectional LED based solar light (Torch) excluding the battery will be warranted for a period of at least 5 years from the date of supply. The batter | 20 year |
| An Operation, Instruction and Maintenance Manual, in English and the local language, should be provided with the system as per MNRE Specn., | Yes |
| Availability of Type Test Report from Central Govt./NABL/ILAC accredited lab to prove conformity to specification | Yes |
| All the test reports shall be furnish to the buyer on demand | Yes |
