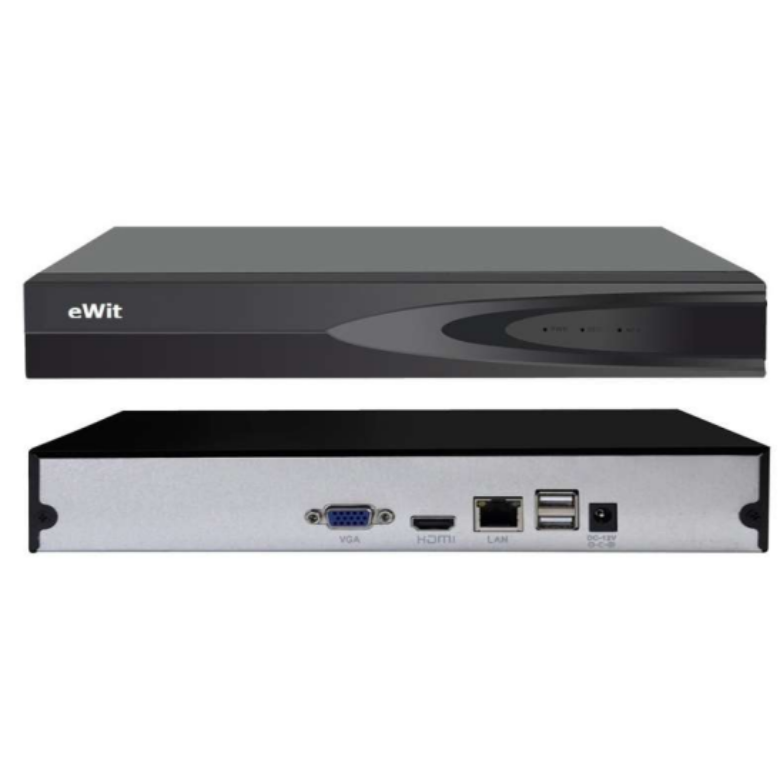

EW-N1016H2
eWit next generation network video recorder offers unparalleled recording technology for IP video
surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices aking it the perfect solution for surveillance systems with or without a video management system (VMS).
Key Features:
- Intel Processor
- Max 16 IP Camera Inputs with IVS Recording
- Max 180 Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- Expanded Storage Space
- Smart Tracking
- Intelligent Video System with Business Analytics (Two IP Channels)
- Dual-OS Design to Ensure High Reliability of System Running
- H.264+ Compression Effectively Reduces the Storage Space and Costs by up to 50%
- HDMI/VGA Outputs Provided
- Up to 2 SATA Interfaces Connectable for Recording and Backup
16 Channel NVR Specifications
System |
|
| Main Processor: | Dual Core Embedded Processor |
|---|---|
| Operating System: | Embedded LINUX |
| Incoming/Outgoing Bandwidth: | 180/180 MBPS |
| Remote Connection: | 128 |
Video & Audio Input |
|
| IP Camera Input: | 16 Channel Up to 8 MP |
| 2 Way Talk: | 1 Ch Input / 1 Ch Output RCA |
Video & Audio Output |
|
| Recording Resolution: | 18MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| VGA / HDMI Output Resolution: | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output: | 2-Ch, RCA (2.0Vp-p, 1 KΩ) |
Display |
|
| Decoding Format: | H.265+/H.265/H.264/H.264+/MPEG4 |
| Live View: | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback Resolution: | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Display Split: | 1/4/8/9/16 |
| Synchronous Playback: | 8 Ch |
| OSD: | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Capability: | 12-ch@12 MP(20fps)/4-ch@8 MP(25fps)/8-ch@4MP (30fps)/16-ch@1080p(30fps) |
Network |
|
| Network Protocol: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, Ipv6, Bonjour, iSCSI |
| Open Protocol: | ONVIF-S&G Support |
| Users: | 128 User |
Storage |
|
| Internal HDD: | 2 SATA Ports |
| Capacity: | Up to 10 TB Capacity for Each HDD |
Interface |
|
| Network Interface: | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| Serial Interface: | RS-232; RS-485; Keyboard |
| USB Interface: | Front Panel: 1xUSB 2.0; Rear Panel: 1xUSB 3.0 |
| Alarm IN/Out: | 4/2 |
General Specification |
|
| Power Supply: | 230V AC+/-10%, 50/60Hz |
| Max Power: | 200W |
| Power Consumption: | ≤ 30 W |
| Working Temperature: | -10 to +55°C (+14 to +131°F) |
| Working Humidity: | 10% to 90% |
| Chassis: | 2U Chassis with 19” Rack-Mounted |
| Working Environment: | -10°C ~ +55°C / 10% ~ 90% RH |
| Certificate: | CE, FCC, ROHS |
| Country of Origin: | India |
