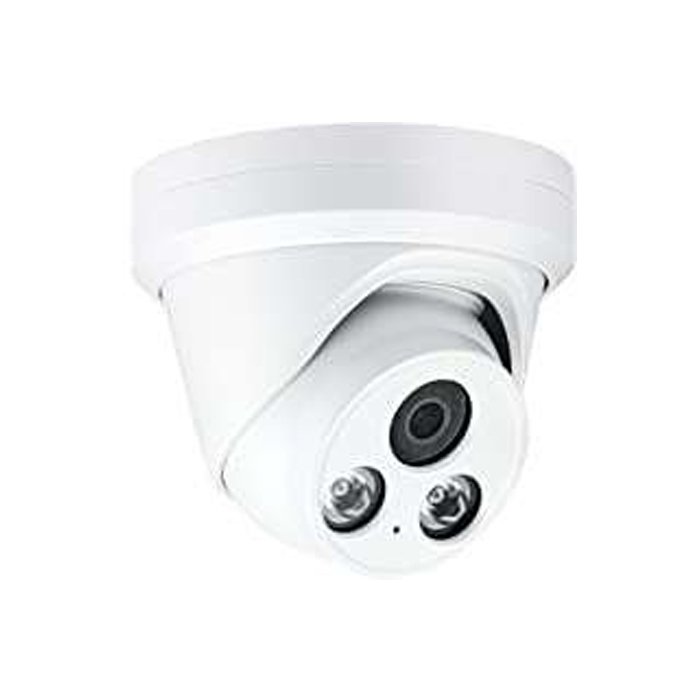

EW-IP8030D
With features of simple installation, easy operation, and high performance-cost ratio, This Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. This product uses the latest PoE technology to troubleshoot the occurrence of any issues in the system making it easier to use. With the help of this technology, your camera now only consumes energy directly from the power supply and doesn’t require any mid-way switches. Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Description
Key Features-
- 1/2.7” Progressive Scan Backlight Illuminated CMOS
- 3840×2160@15 fps, MJPEG up to 2688×1520@25/30 fps
- 8 mm Fixed Lenses
- Color: 01 Lux @ (F2.0, AGC ON)
- 265, H.265+, H.264, H.264+
- 150 dB WDR
- 3D DNR
- Support SD Card up to 128GB
- IR Range up to 30 Meter
Specifications
| Camera | |
|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS Image Sensor(0.9407CM) |
| Scanning System: | Progressive |
| Min. Illumination: | Color: 0.01 Lux @ (F2.0, AGC On), B/W: 0.02 Lux @ (F2.0, AGC On), with IR On, Monochrome: 0Lux |
| Effective Pixels: | 3840(H) x 2160(V) |
| Shutter Time: | 1/3s – 1/100000 sec |
| Slow Shutter: | Yes |
| P-IRIS | Yes |
| DNR: | 3D DNR |
| Max. Image Resolution: | 8 Mega Pixel (3840×2160) @ 50fps/60fps |
| RAM/ROM | 128MB/128MB |
| Day& Night: | Auto/Manual/Schedule |
| WDR: | 120db True WDR |
| BLC/GC/SI: | Auto/Manual |
| Auto Gain Control: | Auto/Manual |
| NR: | 3D DNR |
| S/N Ratio: | >56db |
| White Balance: | Auto/Manual/Natural/Street Lamp/Outdoor/Regional |
| Angle Adjustment: | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Backlight Compression: | Supported |
| Camera Lens | |
| Focal Length: | 2.8 MM Lens |
| Lens Type: | Fixed Lens |
| Mount Type: | M12 |
| Max Aperture: | F2.0 |
| IRIS Type: | Fixed |
| Field of View: | Horizontal: 51.26°, Vertical: 28.84°, Diagonal: 58.74° |
| Focus: | Auto, Semi-Auto, Manual |
| Close Focus Distance: | 2.8mm: 0.8m, 3.6mm: 1.4m |
| IR | |
| IR Range: | Up to 30 Meter |
| Wavelength: | 850nm |
| Sharpness | |
| HLC: | 50Hz:25fps CIF (352×288) 60Hz:30fps CIF (352×240) |
| BLC: | Support |
| OSD: | 8 OSD |
| ROI: | 2 Area |
| Defog: | Support |
| Compression | |
| Video Compression: | Main Stream: H.265/H.264/H.265+/H.264+ Sub Stream/ Third Stream/Fourth Stream/Fifth Stream/Custom Stream: H.265/H.264/MJPEG |
| H.264 Type: | Baseline Profile/Main Profile/High Profile |
| H.264+: | Main Stream Supports |
| H.265 Type: | Main Profile |
| H.265+: | Main stream supports |
| Video Bit Rate: | H.264: 24kbps-10224kbps H.256: 14Kbps-9984 Mbps |
| Image | |
| Max. Resolution: | 3840×2160 |
| Video Streaming: | Main Stream: 4K(1~15fps)/ 3M(1-25/3Ofps) Sub Stream: D1(1-25/30fps) Third Stream: 720P(1~25/30fps) |
| Resolution: | 4K(3844×2160)/6M(3072×2048)/5M(2560×1920)/3M(2048×1536)/ 3M(2304×1296)/ 1080p(1920×1080)/1.3M(1280×960)/720(1280×720)/D1(704×576/704×480) |
| Image Enhancement: | BLC, HLC, 3D DNR, Defog, EIS, ROI, AWB, AGC |
| Image Setting: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Hue, Adjustable by Client Software or Web Browser |
| Target Cropping: | Yes |
| SVC: | H.264 and H.265 Encoding |
| Audio | |
| Built-in Mic | Yes |
| Environmental Noise Filtering: | Yes |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Network | |
| Alarm Trigger: | Motion Detection, Video Tampering, Network Disconnect, IP Address Conflict, Illegal Login, HDD Full, HDD Error |
| Event Trigger: | Abnormality Detection: Motion Detection, Video Tempering, No SD Card, SD Card Full, SD Card Error, Network Disconnected, IP Conflict, Illegal Access, Voltage Detection |
| Protocols: | TCP/IP, ICMP, HTTP,FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPoE, NTP, UPnP, SMTP,SNMP,IGMP, 802.1X,Qos, IPvS, UDP, Bonjour |
| Simultaneous View: | Up To 20 Channels |
| Users: | 20 |
| Privacy Masking: | 4 Areas |
| Motion Detection: | 4 Areas |
| Mobile: | iPhone, iPad, Android |
| Security Measures: | Password Protection, HTTPS Encryption, IEEE 802.1x port-Based Network Access Control, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF |
| Compatible Integration: | ONVIF (Profile S), API |
| Mirror: | Yes |
| Encrypted Data Transmission: | HTTPS (SSL/TSL) |
| Web Browser: | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface Port |
| Audio: | 1 Input, 1 Output, Mono Sound |
| Alarm: | 2 Input, 2 Output |
| Video Output: | 1Vp-p composite output (75 Ω/ CVBS) |
| On Board Storage: | Support SD/Micro SD Card Up to 256GB |
| Reset Button: | Yes |
| Smart Features | |
| Behavior Analysis: | Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
| Exception Detection: | Scene Change Detection, Defocus Detection |
| Statistics: | Counting |
| Face Detection: | Yes |
| Smart Detection: | Tripwire, Intrusion |
| Region of Interest: | Main Stream/Sub Stream/Third Stream/Fourth Stream/Fifth Stream: 4 Fixed Regions For Each Stream And Dynamic Face Tracking |
| General | |
| General Function: | Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Masks, Watermark, IP Address Filter |
| Operating Conditions: | -40 °C ~ 60 °C (-40 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | PoE (802.3AT, 42.5V TO 57V), 0.5A TO 0.3A, MAX 18w |
| Power Consumption: | 12 VDC, 1.2A, MAX 7 W |
| Weather Proof: | IP 67 IK10 |
| Weight: | 250g |
| Casing: | Metal |
| Certification: | ISO, CE, FC, ROHS |
| Country of Origin: | India |
