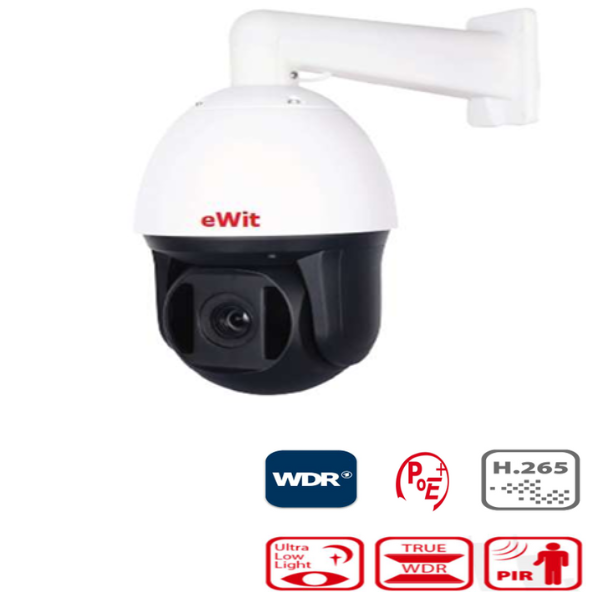

EW-IP50250Z
With features of simple installation, easy operation, and high performance-cost ratio, this Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. This product uses the latest PoE technology to troubleshoot the occurrence of any issues in the system making it easier to use. With the help of this technology, your camera now only consumes energy directly from the power supply and doesn’t require any mid-way switches. Regions of Interest (ROI) is a user-defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.
Key Features :-
- 1/2.8″ 5MP PS CMOS Image Sensor
- Max. 25/30fps@1080P
- Powerful 36x Optical and 16x Digital zoom
- WDR (120dB), 3D DNR, Day/Night (ICR), EIS, Defog, ROI, BLC, HLC
- Support Starlight Technology • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern, auto pan
- IR Range of 250 Meter, IP67, Support PoE+
- Max 400° /s pan speed, 360° endless pan rotation
- Built-in 1/1 alarm in/out
Description
Specification
| Camera | |
|---|---|
| Image Sensor: | 1/2.8” Progressive Scan CMOS Sensor |
| Effective Pixels: | 2560(H) x 1440(V) |
| System Signal: | PAL/NTSC |
| Resolution: | 5 MP |
| Camera | |
| Minimum Illumination: | Color: 0.001 Lux (F 1.6, IR On) B/W: 0.0001 Lux (F1.6, IR On) 0 Lux @ with IR On |
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/ Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain Control: | Auto/Manual |
| Shutter Time: | 1/5s to 1/30,000s |
| Auto Exposure: | Automatic Level Control/Electronic Level Control |
| Signal Process: | Digital Signal Process |
| Day Night IR Cut Filter: | Auto/(ICR)/Color/B/W |
| Privacy Mask: | 24 Programmable Privacy Masks, Mask Color Configurable |
| Focus Mode: | Auto/Manual |
| ROI: | Support |
| RAM/ROM: | 1GB/4GB |
| WDR: | 120 dB WDR |
| DNR: | 3D DNR |
| AGC Control: | Auto/Manual |
| IR Intensity: | Automatic |
| PTZ Controls: | Yes |
| S/N Ratio: | >58db |
| Back Light Compensation: | BLC/HLC/WDR (120db) |
| LENS | |
| Focal Length: | 4.5~162MM Motorized Varifocal Lens |
| Digital Zoom: | 16X |
| Optical Zoom: | 36X |
| Aperture Range: | F1.6~F4.0 |
| IRIS Control: | Automatic DC-IRIS |
| Zoom Speed: | 3.6s Approx. |
| Field of View: | H: 63°~3°, V: 31.92°~1.34°, D: 63.71°~2.71° |
| Focus Control: | Auto/Semi Auto/Manual |
| Close Focus Distance: | 100MM~1000MM |
| IR | |
| IR Range: | 250 Meter |
| Smart IR: | Yes |
| PTZ | |
| PAN Travel: | 0°~360° endless, Pan Speed: 0.1° ~ 350°/sec |
| Tilt Travel: | -15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~260°/sec |
| Manual Speed: | Pan: 0.1° ~350° /s; Tilt: 0.1° ~350° /s |
| Preset Speed: | Pan: 400° /s; Tilt: 300° /s |
| Power Up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Presets: | 300 |
| Proportional Zoom: | Available |
| Power of Memory: | Yes |
| Pattern Scan: | 4 Pattern Scans, Record Time Over 10 Minutes for Each Scan |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Patrol Scan: | 8 Patrols, up to 32 Presets for Each Patrol |
| 3D Positioning: | Yes |
| PTZ Position Display: | Yes |
| Preset Freezing: | Yes |
| Scheduled Task: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression Standard | |
| Standard Video Compression: | Interstream; H.265; H.264+; H.264B; H.264M; H.264H; MJPEG) |
| Bit Rate Control: | CBR/VBR |
| Video Bit Rate: | H.264: 3Kbps~20480Kbps H.265: 3Kbps~20480Kbps |
| Audio Compression: | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Audio Bit Rate: | H.264: 32Kbps~8192Kbps, H.265: 32Kbps~8192Kbps |
| Smart Feature | |
| Basic Event: | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| Smart Event: | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record: | ANR |
| ROI/Defog/AWB/BLC/HLC: | Support |
| Power UP Cation: | Auto Restore to Previous PTZ and Lens Status After Power Failure |
| Speed Setup: | Human-Oriented Focal Length |
| Special Feature: | Defog, IR Range up to 250m, up to 300 Presets, 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Image | |
| Max. Resolution: | 2560 × 1440 |
| Video Streaming: | Main Stream: 5M/4M/3M/1080P/1.3M/720P (1–25/30 fps) Sub Stream1: D1/CIF (1–25/30 fps) Sub Stream2: 2MP/1.3MP/720P (1–25/30 fps) |
| Image Setting: | Saturation, Brightness, Contrast, Sharpness |
| OSD: | 16X16, 32X32,48X48, 64X64, 96X96 Total 5 Regions |
| Motion Detection: | Support |
| Image Enhancement: | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Network | |
| Event Trigger: | Motion/Tampering Detection; Audio Detection; Network Disconnection Detection; IP Conflict Detection; Memory Card State Detection; Memory Space Detection; Power Exception Detection |
| Video Analytics: | Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Video Abnormal, Audio Abnormal |
| IVS: | Tripwire and Intrusion. Support Alarm Triggering by Target Types (Human and Vehicle). Support Filtering False Alarms Caused by Animals Rustling Leaves, Bright Lights, |
| API: | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF Profile S&G, API |
| User/Host: | Up to 32 users |
| 3 levels: | Administrator, Operator and User |
| Simultaneous Live View: | Up to 20 channels |
| Security Measures: | User Authentication (ID and PW), Host Authentication (MAC Address); HTTPS Encryption; IEEE 802.1x Port Based Network Access Control; IP Address Filtering |
| Smart Phone: | iPhone, iPad, Android Phone |
| Web Browser: | IE 8 to 11, Chrome 31.0+, Firefox 30.0+ |
| Interface | |
| Network Interface: | 1 RJ45 10 M/100 M Ethernet, Hi-PoE |
| Audio Input/ Output: | 1-Ch Audio Input, 2 to 2.4 V[p-p], 1 KΩ ± 10% 1-Ch Audio Output, Line Level, Impedance: 600 Ω |
| Alarm Input/ Output: | 4 2-Ch Alarm Input/1-ch Alarm Output |
| SD Card Support: | Support SD/Micro SD Card up to 256GB |
| General | |
| Language: | 32 Language |
| Power: | 24 VAC, 2.5 A, 50/60 Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 A Max.: 13W, including max. 22W for IR On |
| Working Temperature: | -50°C to 70°C (-40°F to 158°F) |
| Working Humidity: | ≤ 95% |
| Protection Level: | IP67, IK10 |
| Material: | ADC 12, PC+10% GF (Metal) |
| Weight: | 3.5 Kg |
| Certificate: | BIS, CE, FC, ROHS, GDPR |
| Country of Origin: | India |
