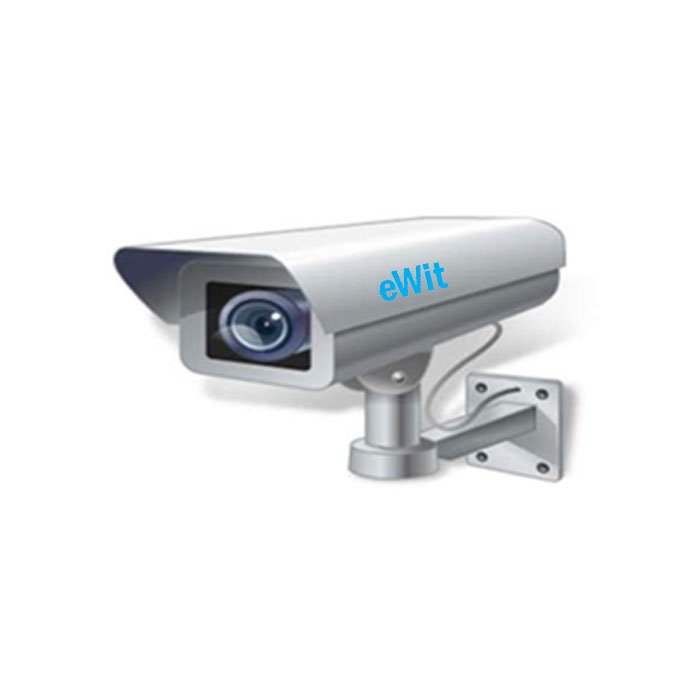

With features of simple installation, easy operation, and high performance-cost ratio, This Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. This product uses the latest PoE technology to troubleshoot the occurrence of any issues in the system making it easier to use. With the help of this technology, your camera now only consumes energy directly from the power supply and doesn’t require any mid-way switches. Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Specification
| Image Sensor: | 1/3” Progressive Scan CMOS Image Sensor |
| Scanning System: | Progressive |
| Min. Illumination: | Color: 0.05 Lux @ 30IRE, B/W: 0.01 Lux @ 30IRE, 0 Lux with IR |
| Effective Pixels: | 2600(H) x 1500(V) |
| Shutter Time: | 1/25s – 1/100000 sec |
| Slow Shutter: | Yes |
| Interface | RJ 45, 100/1000 Base TX |
| P-IRIS | Yes |
| DNR: | 3D DNR |
| Max. Image Resolution: | 2 Mega Pixel (2688×1520) @ 50fps/60fps |
| Image setting |
Saturation, contrast, brightness, sharpness, WDR, defogging, white balance, day/night threshold, compression, mirroring of images, electronic image stabilization, text and image overlay, privacy masks . |
| Day& Night: | IR Cut Filter. |
| WDR: | DWDR 150db |
| BLC/GC/SI: | Auto/Manual |
| Gain Control: | Auto/Manual |
| NR: | 3D DNR |
| S/N Ratio: | >56db |
| White Balance: | Auto/Manual/Natural/Street Lamp/Outdoor/Regional |
| Angle Adjustment: | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Camera Lens
| Focal Length: | 9-20 mm Lens |
| Lens Mount: | Integrated |
| Max Aperture: | F1.2~F2.5 |
| Focus: | Auto, Semi-Auto, Manual |
| Built in ANPR: | Automatic License Plate Recognition System |
IR
| IR Range: | Up to 50 Meter |
| Wavelength: | 850nm |
Sharpness
| HLC: | 50Hz:25fps CIF (352×288) 60Hz:30fps CIF (352×240) |
| BLC: | Support |
| OSD: | 8 OSD |
| ROI: | 2 Area |
| Defog: | Support |
Compression
| Video Compression: |
H.264 Main, Base Profile and MJPEG. Minimum 2 simultaneous Streams @ with 25fps @1920 x 1080 and 3rd stream @ with 25fps @ 1280 x 720 |
| H.264 Type: | Baseline Profile/Main Profile/High Profile |
| H.264+: | Main Stream Supports |
| H.265 Type: | Main Profile |
| H.265+: | Main stream supports |
| Video Bit Rate: | 256 Kbps to 16 Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM |
| Max. Resolution: | 2600×1500 |
| Video Streaming: |
Main Stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub Stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
| Resolution: |
4MP (2688 × 1520) 4MP(2560 × 1440) ; 3MP( 2304 × 1296); 2MP (1920 × 1080); 1.3M P(1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
| Image Enhancement: | BLC, HLC, 3D DNR, Defog, EIS, ROI, AWB, AGC |
| Image Setting: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Hue, Adjustable by Client Software or Web Browser |
| Target Cropping: | Yes |
| SVC: | H.264 and H.265 Encoding |
Network
| Network Storage: | Supported |
| Alarm Trigger: | Motion Detection, Video Tampering, Network Disconnect, IP Address Conflict, Illegal Login, HDD Full, HDD Error |
| Event Trigger: |
Motion Detection, Edge storage events, External Input, Software and hardware alarms, Network lost. |
| Protocols: | IPv4, IPv6 , HTTP, HTTPS, FTP, SMTP, SNMP, DHCP, DNS, Dyn DNS, RTSP, RTP, TCP, UDP |
| Simultaneous View: | Up To 20 Channels |
| Event Actions | Events / alerts send via FTP or HTTP or network share, Pre and post alarm video buffering, |
| Users: | 32 |
| Privacy Masking: | 4 Areas |
| Mobile: | iPhone, iPad, Android |
| Security Measures: |
Password Protection, HTTPS Encryption, IEEE 802.1x port-Based Network Access Control, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF |
| Compatible Integration: | ONVIF (Profile S), API |
| Mirror: | Yes |
| Encrypted Data Transmission: | HTTPS (SSL/TSL) |
Interface
| Built in Video Analytics |
Video Motion Detection, Advanced Motion Detection to eliminate False alarms, Active tampering alarm, Classify Object Human, Vehicle, Truck , Bicycle, Line crossing Detection. |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface Port |
| Audio: | 1 Input, 1 Output, Mono Sound |
| Alarm: | 2 Input, 2 Output |
| Video Output: | 1Vp-p composite output (75 Ω/ CVBS) |
| Reset Button: | Yes |
| Frame rate | 25/30 fps |
| On Board Storage: | Supported SD/SDHC/SDXC slot, up to 128 GB |
Smart Features
| Behavior Analysis: |
Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal detection |
| Exception Detection: | Scene Change Detection, Defocus Detection |
| Statistics: | Counting |
| interface | RJ 45, 100/1000 Base TX |
| Smart Detection: | Tripwire, Intrusion |
| Region of Interest: |
Main Stream/Sub Stream/Third Stream/Fourth Stream/Fifth Stream: 4 Fixed Regions For Each Stream And Dynamic Face Tracking |
General
| General Function: | Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Masks, Watermark, IP Address Filter |
| Operating Conditions: | -40 °C ~ 60 °C (-40 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | PoE (802.3AT, 42.5V TO 57V), 0.5A TO 0.3A, MAX 18w |
| Power Consumption: | 12 VDC, 1.2A, MAX 7 W |
| Weather Proof: | IP 67 IK10 |
| Weight: | 300g |
| Certification: | ISO, CE, FC, ROHS |
| Country of Origin: | India |
