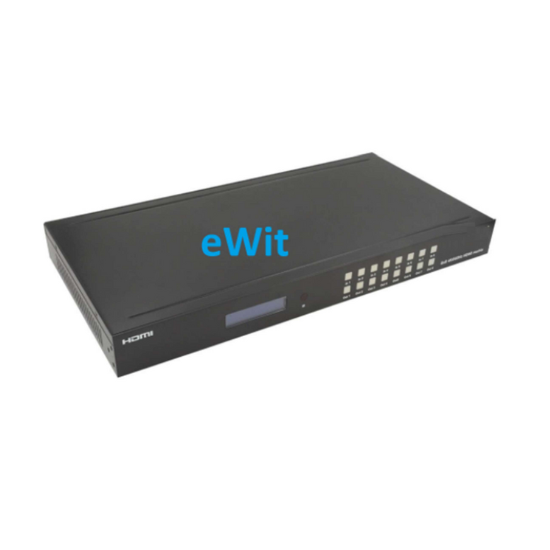

EW-HDMIS-8X8
8×8 HDMI Matrix Switcher — Technical Specifications
Compact 8×8 HDMI switcher with IR/RS232/IP control, metal chassis and professional audiovisual spec sheet.
Primary Specs
| Input Ports | 8 × HDMI Type A (female) |
| Output Ports | 8 × HDMI Type A (female) |
| Switching Speed | 200 ns (max) |
| Power Consumption | 32 W |
| Power Supply | 100–240 VAC, 50–60 Hz, 1.0 A |
| Operating Temperature | 0 °C to 50 °C |
| Relative Humidity | 20% – 90% |
| Weight | 4000 g |
| Chassis Material | Metal |
Video / Resolution
| Max. Resolution | Up to 1080 px |
| Video Bandwidth | 600 MHz / 18 Gbps |
| Backplane Data Rate | 12.5 Gbps |
| Signal Bandwidth | 6.75 Gbps |
| Color Depth | 8-bit |
| Supports | 2D; Full 3D, Dolby TrueHD |
| Max HDMI Cable Length | 15 m (recommended) |
| Max Transmission Jitter | 5 ns ±1 ns |
Audio & Signal
| Audio Sample Rate | 32 kHz |
| IR Frequency | 30 kHz |
| Impedance | 100 Ω |
| Shielding | Yes |
| Fan Noise (SPL) | 18 dBA |
Control & Interfaces
| IR Extender | 1 × 3.5 mm jack (external) |
| RS-232 | 1 × 9-pin D-sub (baud rate: 19200 bps) |
| IP Control | 1 × RJ45 (IP control) |
| Digital Display | Yes (digital LED) |
| Remote Control | Yes |
| Source Status | Automatically scans inputs; status via LEDs |
Dimensions & Mechanical
| Dimensions (W × H × D) | 438 × 492 × 74 mm |
| Silkscreen Color | Black |
| Classification | Optical Fiber Cables, HDMI Cables (related) |
| Application | Speaker, Multimedia, Monitor |
| Certification / Safety | CE, FCC, RoHS (Power supply certificates: CE, FCC) |
| Type | Fixed switcher (Matrix) |
Model: 8×8 HDMI Matrix
Ideal for AV rooms, small control centers and multimedia installations.
Ideal for AV rooms, small control centers and multimedia installations.
