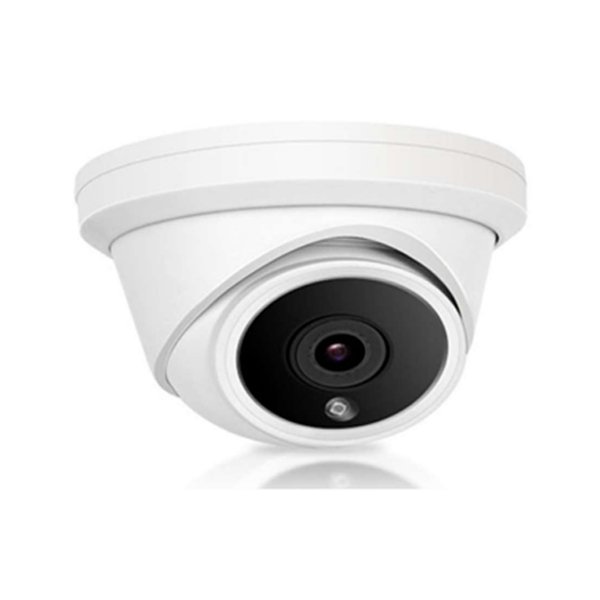

5 MP IP Indoor 30M SD
With features of simple installation, easy operation, and high performance-cost ratio, This Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. This product uses the latest PoE technology to troubleshoot the occurrence of any issues in the system, making it easier to use. With the help of this technology, your camera now only consumes energy directly from the power supply and doesn’t require any mid-way switches. Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Key Features-
- 1/2.8” Progressive Scan CMOS
- 2592×1944 @20/30 fps, Support Up to 2688×1520@30 fps
- 2.8/3.6/4/6/8/12 mm Fixed Lenses
- Color: 0.03 Lux @ (F1.6, AGC ON)
- H.265, H.265+, H.264, H.264+
- 120 dB WDR
- 3D DNR
- IR Range up to 30 Meter
Description
| Camera | |
|---|---|
| Image Sensor: | 1/2.8” Progressive Scan CMOS Image Sensor |
| Scanning System: | Progressive |
| Min. Illumination: | Color: 0.03 Lux @ (F1.6, AGC On) B/W: 0.003 Lux @ (F1.6, AGC On) 0 Lux with IR On |
| Effective Pixels: | 2592(H) x 1944(V) |
| Shutter Time: | 1/5s – 1/12000 sec |
| Shutter Type: | Auto/Manual |
| Slow Shutter: | Yes |
| Output: | PAL/NTSC Adjustable |
| DNR: | SSNR V, Wise NR II, 3D DNR |
| RAM/ROM: | 2GB/1GB |
| Max. Image Resolution: | 5 Mega Pixel (2592×1944) @ 25fps/30fps |
| Day& Night: | Day, Night, Auto, Schedule, IR Cut Filter |
| WDR: | 120db True WDR |
| BLC/AGC/SI: | Auto/Manual |
| Auto Gain Control: | Auto/Manual |
| S/N Ratio: | >65db |
| White Balance: | Auto/Manual/Natural/Street Lamp/Outdoor/Regional |
| Angle Adjustment: | Pan: 0° to 0°~350°, tilt: -35° to 70°, rotate: 0° to 355° |
| Camera Lens | |
|---|---|
| Focal Length: | 3.6 MM Fixed Lens |
| Lens Type: | Fixed Lens |
| Mount Type: | M12 |
| Max Aperture: | F1.6 |
| IRIS Control Type: | Fixed |
| Field of View: | 3.6MM: Horizontal – 100°, Vertical – 73°, Diagonal – 129° |
| Focus: | Auto, Semi-Auto, Manual |
| Digital Zoom: | 16X |
| Close Focus Distance: | 3.6mm: 0.5m |
| IR | |
| IR Range: | Up to 30 Meter |
| Wavelength: | 850nm |
| Sharpness | |
| HLC: | 50Hz:25fps CIF (352×288) 60Hz:30fps CIF (352×240) |
| BLC: | Support |
| OSD: | 8 OSD |
| ROI: | 8 Area |
| Defog: | Support |
| Compression | |
| Video Compression: | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG |
| H.264 Type: | Baseline Profile/Main Profile/High Profile |
| Video Bit Rate: | 128Kbps~8Mbps |
| Bit Rate Control: | CBR/VBR |
| Image | |
|
Resolution: |
2592×1944, 2560×1440, 1920×1080, 1280×960,
1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max Frame Rate: | H.264/H.265: Max 30fps/25fps(60/50Hz) MJPEG: Max 30fps @ 5MP Max.25fps |
| Streaming: | Main Stream: 5MP (2592×1944), 4MP (2560×1440), 1080P (1920×1080), 720P (1280×720) D1, CIF 480×240, Max 30fps Sub Stream 1: 704 x 576; 25 FPS PAL/ 30 FPS NTSC, |
| Image Enhancement: | BLC, HLC, 3D DNR, Defog, EIS, ROI, AWB, AGC |
| Video Analytics: | Trip Wire, Perimeter, Video Motion Detection, Tampering, Loitering, Intrusion & People Counting |
| Video Parameters: | Backlight Compensation BLC, WDR, SSDR, ICR Setting |
| Image Setting: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, white balance adjustable by client software or web browser |
| Target Cropping: | Yes |
| SVC: | H.264 and H.265 Encoding |
| Audio | |
|---|---|
| Audio Compression: | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate: | 8-320Kbps (MP3) |
| Built-in Mic | Yes |
| Environmental Noise Filtering: | Yes |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Network | |
|
Alarm Trigger: |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event: | Unattended baggage detection, object removal detection, scene change detection, audio exception detection, video quality diagnosis |
| Linkage: | trigger capture |
| Protocols: | TCP/IP, IPv4, ICMP, HTTP, HTTPS, HTTP-Base64, HTTP- Digest, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, FTP, RTMP, IGMP, 802.1X, QoS, Multicast |
| Simultaneous View: | Up To 12 Channels |
| Users: | Up to 32 users. 3 levels: administrator, operator and user |
| API: | Open Network Video Interface, ISAPI |
| Privacy Masking: | 8 Areas |
| Motion Detection: | ON/Off |
| Mobile: | iPhone, iPad, Android |
|
Security Measures: |
Password Protection, HTTPS Encryption, IEEE 802.1x port-Based Network Access Control, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF |
| Compatible Integration: | ONVIF (Profile S/G/T), API |
| Mirror: | Yes |
| Encrypted Data Transmission: | HTTPS (SSL/TSL) |
| Web Browser: | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| General Function: | One-key Reset, Anti-Flicker, 5 Streams and up to 5 Custom Streams, Heartbeat, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface Port |
| Audio: | 1 Input, 1 Output, Mono Sound |
| Alarm: | 2 Input, 2 Output |
| Video Output: | 1Vp-p composite output (75 Ω/ CVBS) |
| Video Out USB: | Micro USB Type B |
| On Board Storage: | Support SD/Micro SD Card Up to 256GB, NAS |
| Reset Button: | Yes |
| Smart Features | |
| Cyber Security: | Video Encryption, Configuration Encryption, Digest, WSSE, Account Lock, Security Logs, Generation |
| Smart Analytics Features: | Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal detection |
| Exception Detection: | Scene Change Detection, Defocus Detection |
| Statistics: | Counting |
| Face Detection: | Yes |
| Smart Detection: | Tripwire, Intrusion |
| Region of Interest: | Main Stream/Sub Stream/Third Stream/Fourth Stream/Fifth Stream: 4 Fixed Regions For Each Stream And Dynamic Face Tracking |
| General | |
| Language: | 36 |
| Operating Conditions: | -40 °C ~ 70 °C (-40 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, 0.55 A, max. 6.5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.14 A, max. 8.5 W |
| Power Consumption: | 12 VDC, 1.2A, MAX 7 W |
| Weather Proof: | IP 67 IK10 |
| Weight: | 250g |
| Casing: | Metal/Plastic |
| Certification: | BIS, CE, FC, ROHS |
| Country of Origin: | India |
