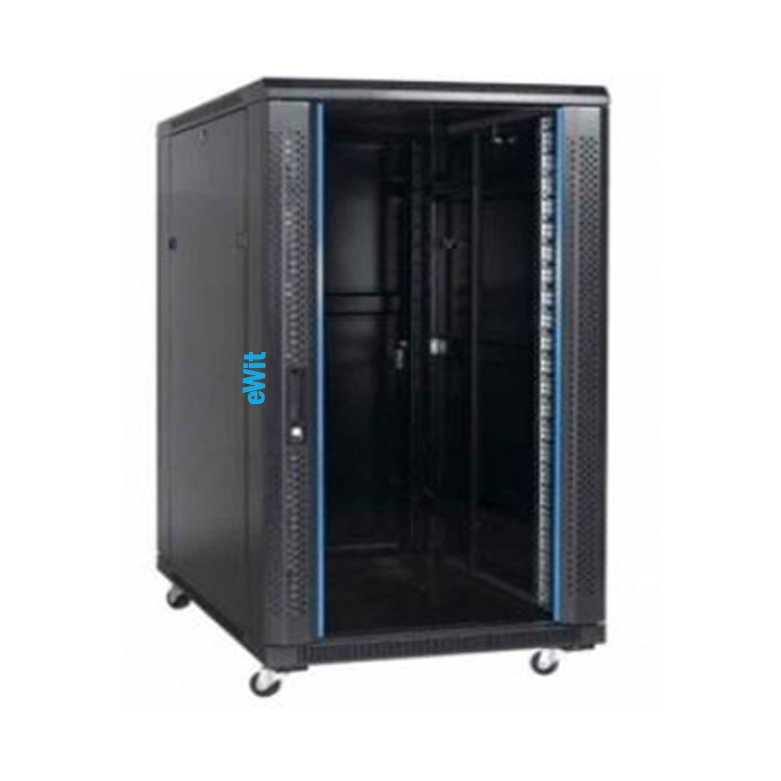

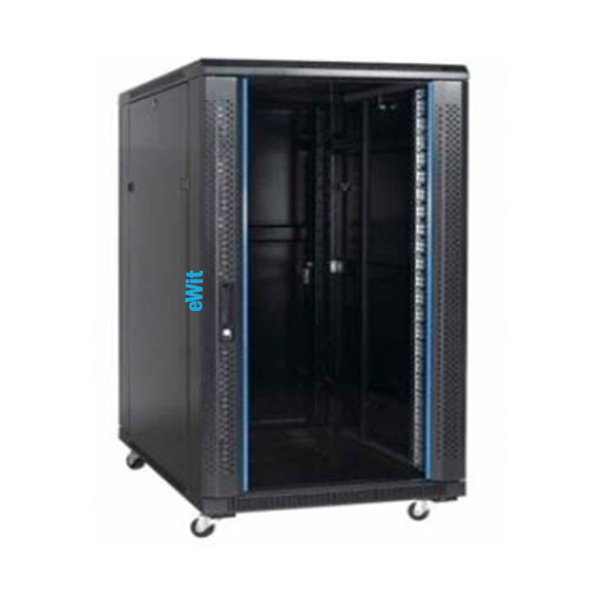

32U Rack

  • Specification
    Height 32U
    Front door 19”
    Overall Height 220 MM
    Usable Height 177 MM
    Usable Width 600 MM
    Overall Depth 800 MM
    Material Steel cabinet powder coated
    Construction Usable Depth 320 MM



Product Enquiry
SKU: D2012 Categories: ,

. Front Door- Glass Door With Key Lock

  1. Rear door- Not Available due to Wall Mount Provision Rear door available For Floor Stand Rack
  2. Side Panels- Fixed Welded/bolted with Top/Base Frame
  3. Cable Entry Cut- Top/ Bottom, 10 socket 6/6 A PDU with MCB
  4. 2 Pair Heavy Duty (1.5mm) Vertical Mounting Rail
  5. Cooling Option- 2 fan Provision mounted on Top Panel
  6. Load Bearing Capacity up to 250 KG
  7. Construction – Dismantle/Welded Construction Overall 1.0mm Thick (20 gauge), Load Bearing angles are 1.6 MM
  8. Power Distribution Unit- 10 6/6 A PDU with MCB
  9. Cable Management- Horizontal Metal & PVC
  10. Fix Shelf/Cantilever Shelf- 255mm to 600mm
