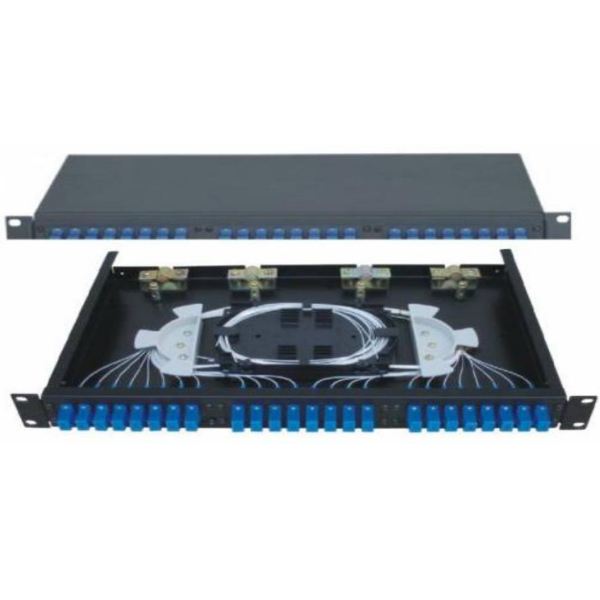

24 Port Full Loaded LIU
Features:
- Aluminum base material for light mounting
- Slim 1 Unit Mounting Height
- Front mounted cable saddles for jumper management
- Can manage both splices and terminations
- Preassembled shelves in multiple configurations
- Supports adapter panels for up to 48 LC, 24 SC, 24 ST, or 24 FC terminations
- Rubber fibers slotted bracket built-in, metal splice shelf to protect fibers
Description
Technical Specifications
| Feature | Details |
|---|---|
| Mounting Type | 19″ Rack Mountable |
| Number of Fibers | 24 Core Single Mode |
| Capacity in Cable | 3 Cable Entry |
| Adaptor Plate | SC-PC Type Adaptor Plates with 24 SC-PC to SC-PC Adaptors |
| Splice Trays | Large, Bend Radius-Controlled Splice Tray(s), Hinged and Stacked |
| Size | 1U (Compact) |
| Fiber and Cable Management | Fiber Guides, Radius Controlled and Secure Tie Down |
| Pigtails | 24 SC-PC Type Pigtails Loaded |
| Drawer Concept | Easy Access of Splice Trays and Back Side Connector |
