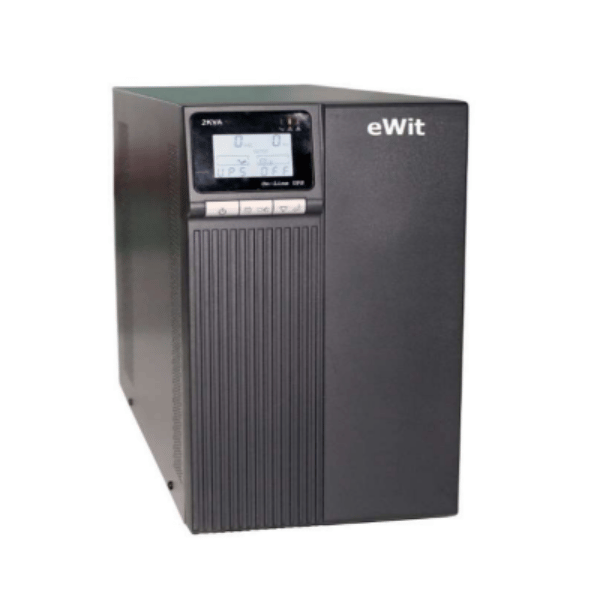

2 KVA Online UPS
eWit is a Single-Phase double conversion online uninterruptible power supply with high frequency technology. It offers true power protection for IT and critical loads across segments. eWit UPS is also solar compatible. It is also suited for workstations, ATMs, cash recyclers, POS, CCTVs and network accessories.
Key Features
- High Power Density: Ensures optimal space efficiency.
- Online Double Conversion: Provides full digital control.
- Selectable Output Voltage: 220/230/240 VAC.
- Wide Input Voltage Range: 110-300 VAC.
- Input Power Factor: 0.99 with PFC.
- Max Charging Current: Up to 12A for long run units.
- Emergency Power Off: Safety feature included.
- ECO Mode: For energy-saving operation.
- Multiple Communication Interfaces: RS232 (USB/Dry contact/SNMP card optional).
- Self-Testing: Initiates on UPS start-up.
- Generator Compatible and supports Cold Start.
- Intelligent Fan Speed Regulation.
Description
| Specification | Details |
|---|---|
| Rating in KVA: | 2 KVA Online |
| Technology: | IGBT-PWM |
| Input Voltage: | AC 110V – 300V 50Hz |
| Nominal Input Current: | 7.73A |
| IN Rush Current Limit: | 8 IRMS |
| DC Bus Voltage: | 72 VDC |
| Efficiency: | 92% |
| Power Factor Load Supported: | 0.8 |
| Overload Limit: | 50% Overload for 3 Sec |
| THDi: | <9% Maximum @ 100% Load 230V Input |
| Input Power Factor: | 0.99 Full Load @ 230V Input |
| Battery Backup Bank: | With Battery |
| Input Frequency Range: | 45-55Hz/54-66Hz |
| Input Protection: | Breaker |
| OVCD: | Withstand 440Vac |
| Nominal Output Voltage: | 200VAC/208VAC/220VAC/230VAC/240VAC |
| Output Power (VA): | 2000VA |
| Output Voltage: | AC 230V +/-1% 50Hz |
| Output Power (W): | 1600 |
| Output Power Factor: | 0.8 |
| Output Waveform: | Pure Sine Wave |
| Output Transient Recovery: | 100ms |
| Output Harmonic Distortion (THD%): | <3% THD, Linear Load @ Line Mode <3% THD, Linear Load @ Battery Mode, 12V Battery <7% THD, Non-Linear Load @ Line Mode <7% THD, Non-Linear Load @ Battery Mode, 12V Battery |
| Output Frequency in Inverter Mode: | 45-55Hz/54-66Hz |
| Output Frequency Slew Rate: | 1Hz/s |
| Transfer Time Inverter Mode to Battery Mode: | 0ms |
| Transfer Time Inverter Mode to Bypass Mode: | 4ms |
| Line Mode Efficiency @ Full Load with Battery Full Charged: | >90% |
| Battery Mode Efficiency @ Full Load 12VDC/Battery: | >86% |
| Battery Backup Provided with Online UPS: | Yes, with Battery |
| Backup Time: | 30 Minutes |
| No of Battery Use: | 6 |
| Battery Make: | eWit |
| Accessories: | Rack for Battery |
| Additional Features: | Pure Sinewave AC Output |
| Design: | Floor Standing |
| Protection: | IP21 |
| Working Temperature: | -10°C to +65°C |
| Casing: | Plastic |
| Installation: | Provided |
| Country of Origin: | India |
